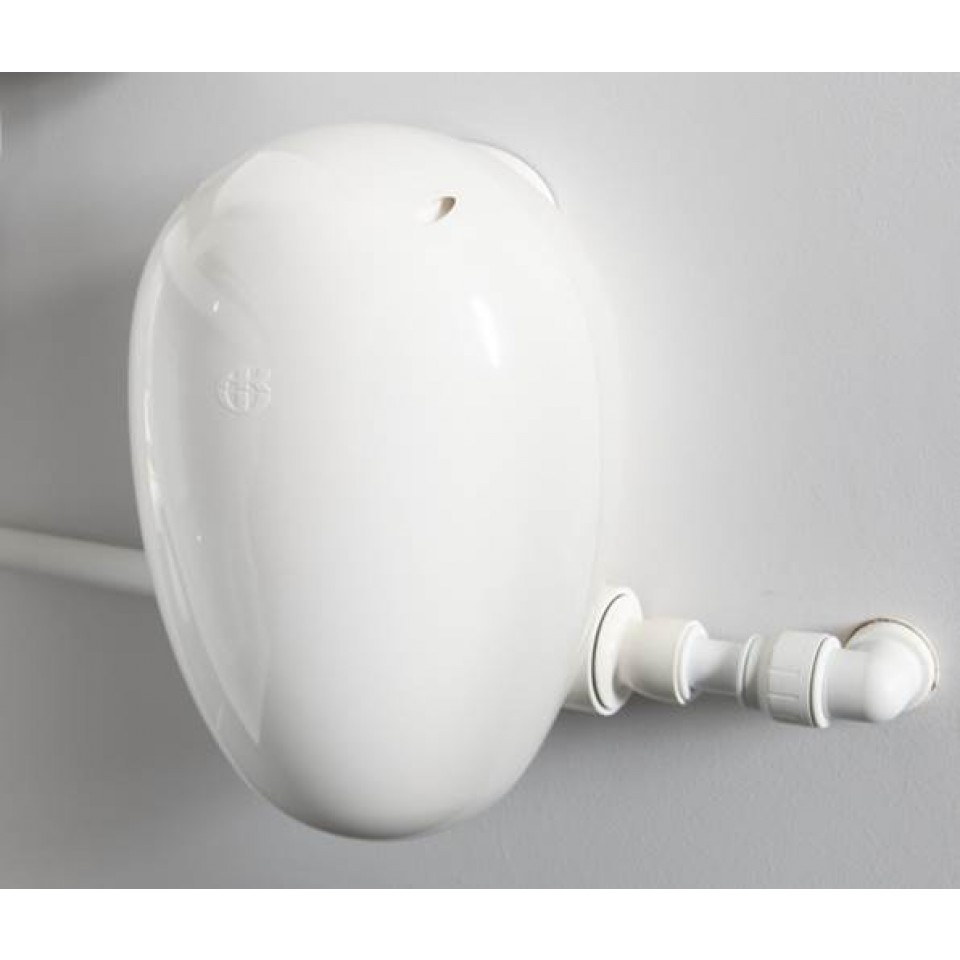

AKW M17 Digipump | Digital Shower Pump for Electric or Mixer Showers

AKW M17 Digipump is a Digital Shower Pump for Electric or Mixer Showers

Ideal solution when gravity drainage isn't an option. The AKW M17 Digipump has a higher flow rate of 17 litres per minute and can be used with both electric showers or mixer showers. Supplied with one flow switch as standard, a second flow switch is necessary for use with mixer showers, one flow switch for each feed.

Benefits of AKW M17 Digipump

• Quiet in operation, no disturbing noises
• Compact, with the pump and controller enclosed in one unit
• Easy to install

Features of AKW M17 Digipump

• 17 litres/min in 'real life' scenario testing
• Pump and controller enclosed in one unit
• 22mm inlet and 22mm outlet connectors
• Non-handed unit (to fit left or right hand)
• IP45 rated
• Pump head uses 4 valves for better debris cleaning
• Pump head can be rotated to allow flow in either direction
• Maximum outlet head 1.0m (39in)
• Maximum inlet head of 0.5m (19in)
• Maximum combined head and lift 1.5m (59in)
• Supply 230v AC 50Hz 73W
• Internal T5A fuse
• Duty cycle 30 mins max on 50% duty
• Flow meter input
• Only shower waste pump range to be Kitemarked
• Additional flow sensor kits are required for use with dual feed (mixer) showers
• 5 year warranty as standard
• BS EN 61558-1, BS EN61558-2-6
• BS EN 60335-1, BS EN 60335-2-41
• BS EN 60529
• E MC Directive 89/336/EEC
• Low Voltage Directive 73/23/EEC

This comes as standard with 1 flow sensor for electric showers

If this is for a mixer shower (dual feed) you will need an additional sensor available in the 'Related Products' section below.

Available Downloads for AKW M17 Digipump | Digital Shower Pump for Electric or Mixer Showers​

      ​
