Whale Shower Pump Switch Connect Tray Kit - BP1558B

Whale Shower Pump Switch Connect Tray Kit - BP1558B
  Zoom
Whale Shower Pump Switch Connect Tray Kit - BP1558BWhale Shower Pump Switch Connect Tray Kit - BP1558BWhale Shower Pump Switch Connect Tray Kit - BP1558B

Free Next Day UK wide delivery

See Delivery tab below for terms and cut off times



Our Price:  £270.00(Exc. 20% VAT)(£324.00 Inc. VAT)

Availability:



Part Number:  BP1558B
Brand:  Whale Showers

+



Relief Available

see VAT Exemption form for details


For mixer shower installations, an additional flow switch is required - Part No. AK1570. This is available in the drop-down option box above or from the 'Related products' section at the bottom of this page.

5 Year Warranty | Register your warranty online

Whale Shower Pump - Switch Connect Tray Kit BP1558B

The automatic shower drain kit with proven reliability is now combined with 12 pump speed settings & Active Link diagnostics.

Shower Waste Water Drainage Solution - for when gravity drainage is not an option.

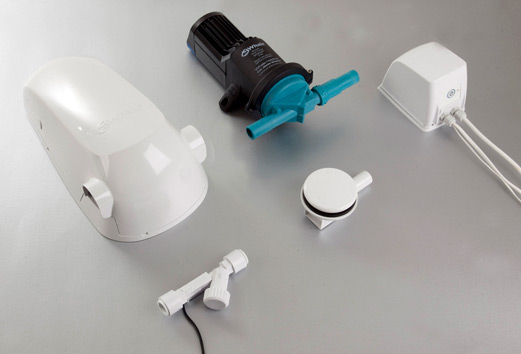

Whale Automatic Shower Pump Tray Kit BP1558B comes with a transformer and flow switch, which will start pumping away the waste shower water automatically when the shower is turned on.  Also supplied is a 50mm diameter waste outlet trap suitable for use with a shower tray. The waste outlet has a 22mm outlet pipe and comes with a 15mm reducer. It is suggested that for electric showers 15mm pipe is used to connect the waste outlet to the pump inlet. For mixer showers use 22mm pipe from the waste to the pump inlet.

  • For mixer shower installations an additional flow switch is required - (Part No. AK1570 or AK1570). These are available from the 'Related products' section at the bottom of this page.
  • 90mm shower tray waste outlet is available if required - See 'Related products' section at bottom of page.

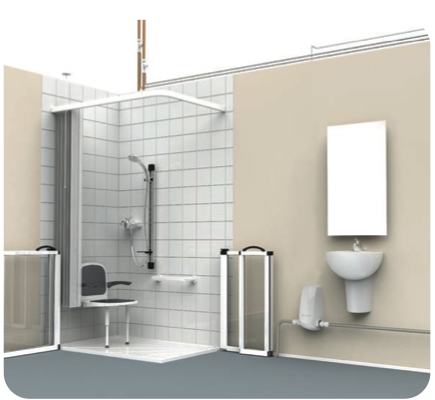

Whale Shower Pump - Tray kit diagram showing the flow of water.
 How the Whale Shower Pump BP1558B works
  • When shower is turned on the flow of water is detected by the flow-switch sensor which in turn activates the Whale Shower Pump.
  • The pump then removes the water from the shower waste and pumps it away.
  • When the shower is turned off the flow switch sensor detects the stop in flow of water and signals the pump to start shut down.
  • The pump will continue for a short time in 'over run phase' to ensure any water that drains to the shower waste outlet after the shower has ended is removed.
  Features of Whale Shower Pump Switch Connect Tray Kit BP1558B for shower trays
  • 12 pump speed settings designed to suit electric and mixer shower installations
  • Adjustable pump speed minimises gulley suction noise
  • High performance. Draws 3 metres from gulley. Lifts 0.5 metre. Pumps up 1 metre

The BP1558B transformer includes patented Active Link diagnostics

  • Light indicates power present when test button is pressed
  • Light indicates flow switch operation
  • Aids installation and maintenance

Accessories and Spares for Whale Switch Connect Tray Kit

  • McAlpine UPSW-4 90mm diameter waste outlet.
  • Mixer Valve Conversion Kit Part No. AK1570
  • Shower Drain Pump Part No. SDS021T
  • Transformer 755.210 Part No. SDS081T
  • Flow Switch/Filter Kit Part No. AK1568
  • Tricuspid Valve Qty 10 Part No. SDS211B
  • Pump Head Replacement Kit (including diaphragm and tricuspid valve) Part No. SDS071T •
  • Diaphragm and Tricuspid Valve Kit Part No. SDS061T

Comes complete with a standard 50mm Diameter trap waste outlet suitable for use with a Shower Tray.

90mm waste outlet available if required - See 'Related products' section at the bottom of the page.      ​
