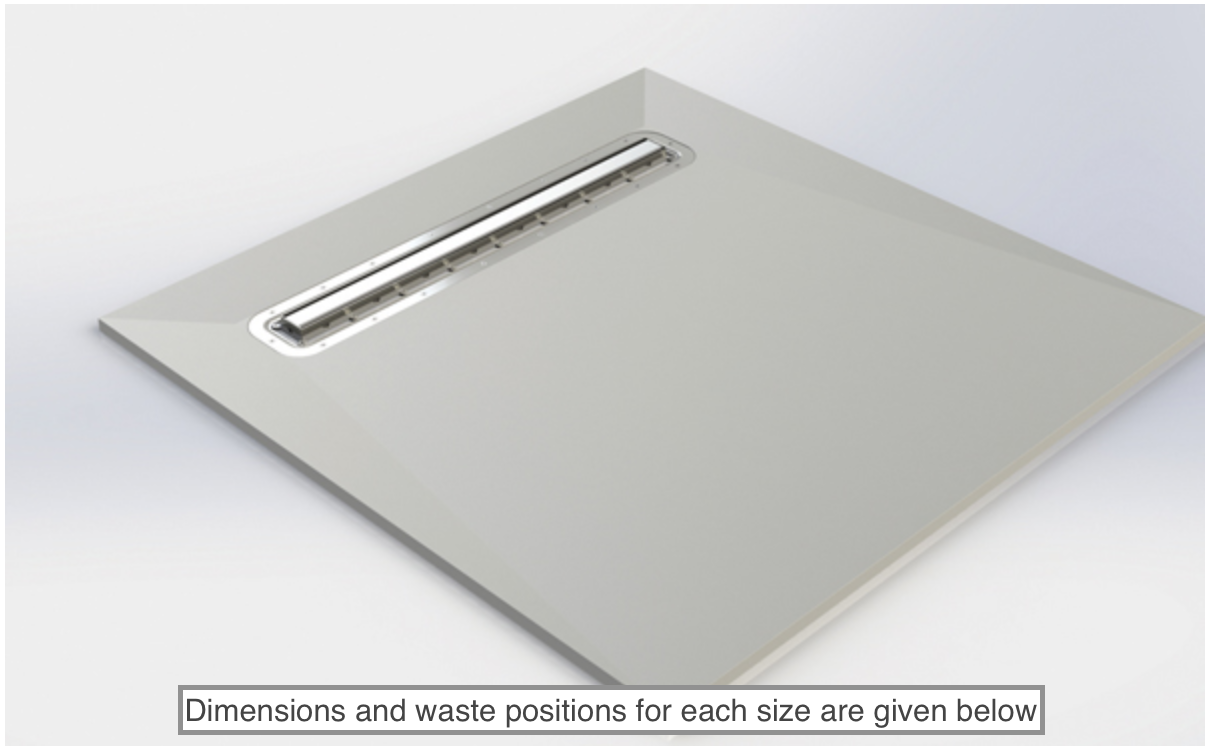

Impey Aqua-Dec Linear 4  Floor Former

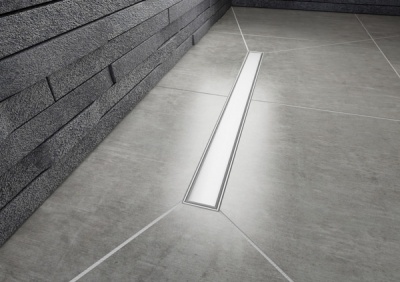

The Aqua-Dec Linear 4 features four gradients to assist flow to the linear drain and has a stylish 40mm wide stainless steel linear drain to create a more defined finish and allow for a higher water flow rate - making it ideal for use with the most powerful showers with body jets. The former is supplied with a stainless steel insert. The stainless steel insert can be upgraded to a tile insert (Select Above)

Features of Impey Aqua-Dec Linear 4

• 4 way fall consistent gradient
• High flow rates of up to 42 litres per minute
• Adjustable drain outlet position can be rotated 180^o
• Height adjustable tiling frame 26mm with standard top
• High-grade brushed stainless steel channel cover as standard
• Easy to install and reliable
• Compatible with modern power showers
• Avoids obstructions such as floor joists
• Caters for different tile thicknesses between 6-26mm
• Durable and non-corrosive
• Supplied with Horizontal waste outlet (can be changed to vertical outlet upon request)
• 22mm Thick
• Full under boarding required
• 6 sizes available (see dimensions below)

Dimensions of Impey Aqua-Dec 4 Decks with 4 falls

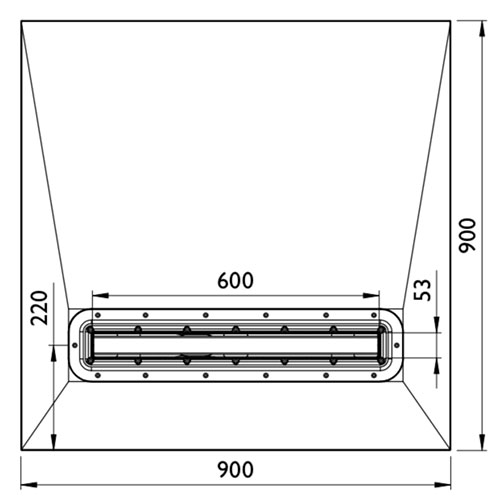

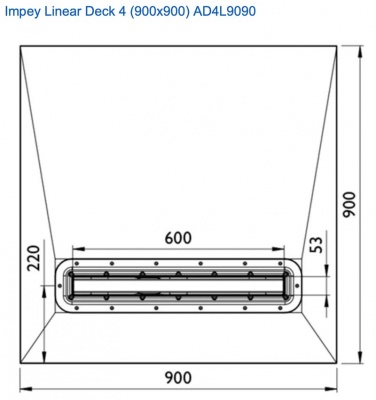

Impey Linear Deck 4 (900x900) AD4L9090

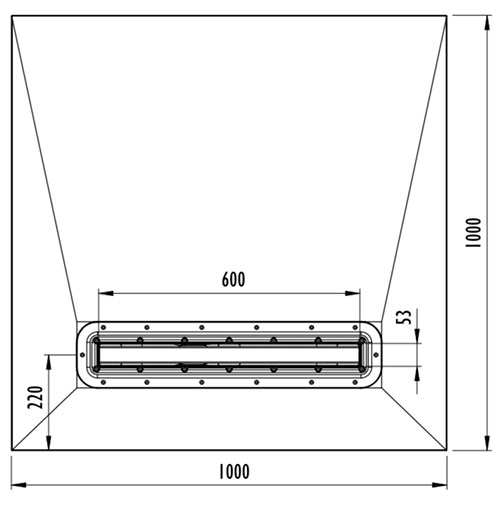

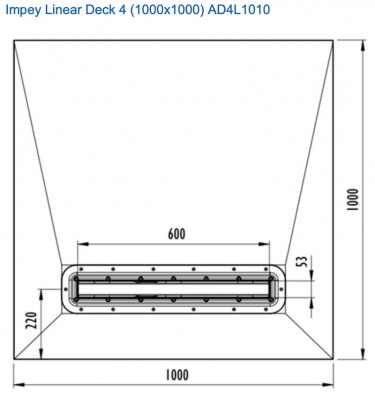

Impey Linear Deck 4 (1000x1000) AD4L1010

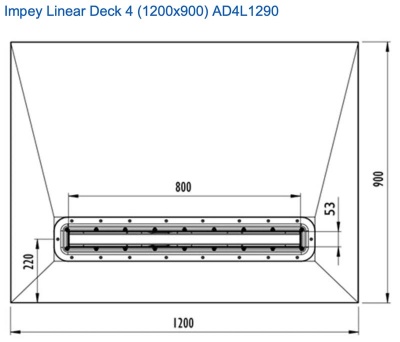

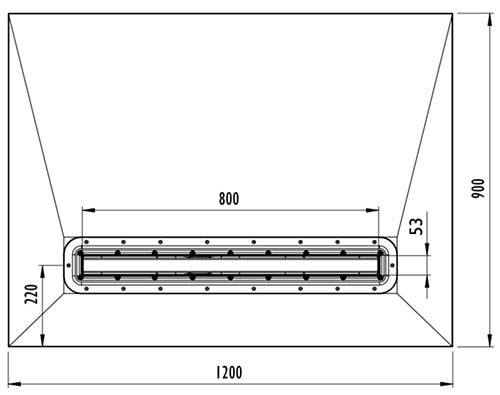

Impey Linear Deck 4 (1200x900) AD4L1290

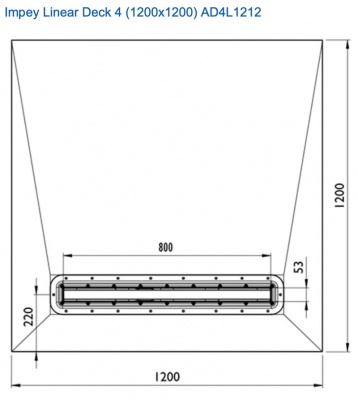

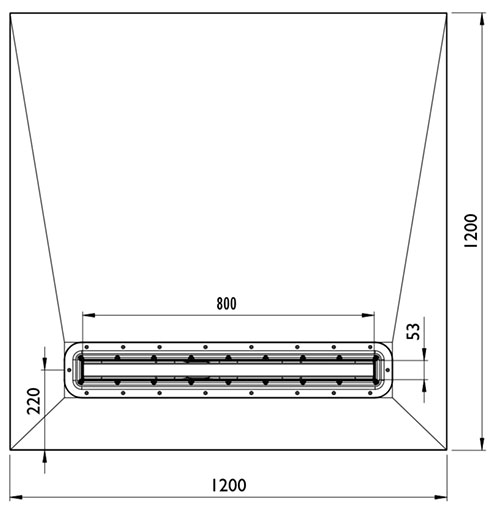

Impey Linear Deck 4 (1200x1200) AD4L1212

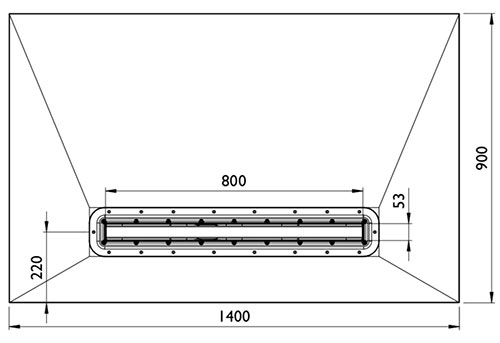

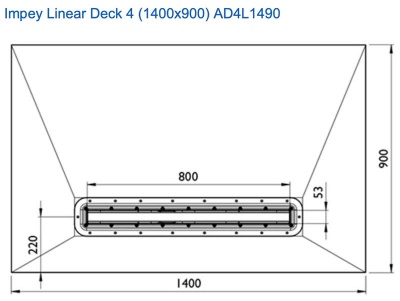

Impey Linear Deck 4 (1400x900) AD4L1490

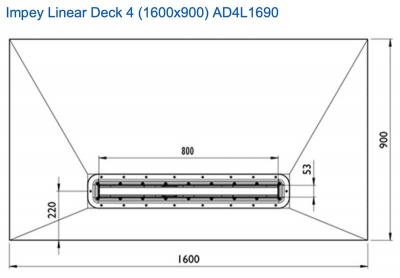

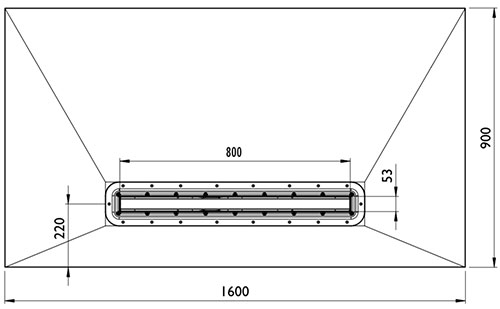

Impey Linear Deck 4 (1600x900) AD4L1690

Side profile Showing Deck thickness, drop to centre of outlet and drop to bottom of waste
