Impey Aqua-Dec Linear 3  Floor Former

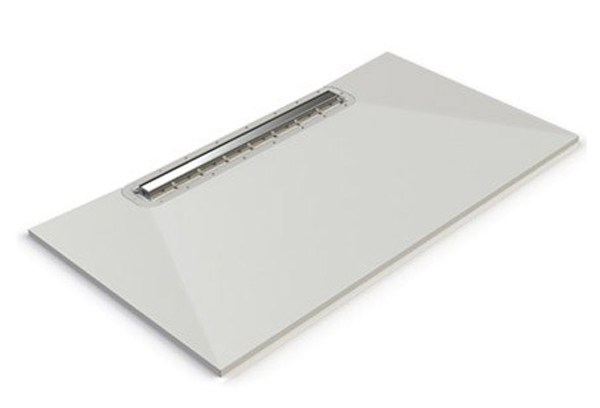

A three gradient design which has been specifically designed to make installation easier.  An exclusive design with three gradients, The Aqua Dec Linear 3 drain is fitted 40 mm from the wall, so is not underfoot when showering. Impey Aqua-Dec Linear 3 has stainless steel insert supplied to finish the tile edges. The stainless steel insert can be upgraded to a tile insert (Select Above). The drain side has to be placed against a wall.

All Aqua-Dec Linear variants come with Impey’s comprehensive Lifetime Guarantee and all share the following features :

Features of Impey Aqua-Dec Linear 3

• 22mm thick
• 3 way fall consistent gradient
• High flow rates of up to 42 litres per minute

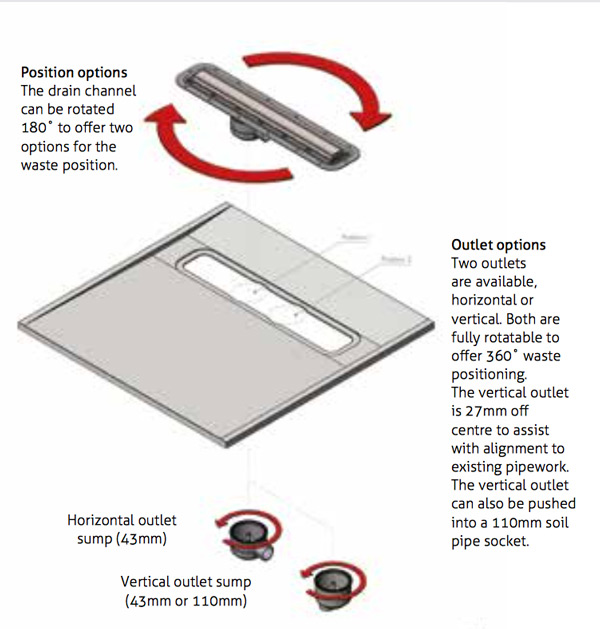

• Adjustable drain outlet position can be rotated 180^o
• Height adjustable tiling frame
• High-grade brushed stainless steel channel cover as standard ( Can be swapped to Tile insert - see option above)
• Easy to install and reliable
• Compatible with modern power showers
• Avoids obstructions such as floor joists
• Caters for different tile thicknesses 6-26mm (with the standard top. Other inserts vary - 9-11mm thick)
• Supplied with Horizontal waste outlet (can be changed to vertical outlet upon request)
• Full under boarding required
• Impey Aqua-Dec Linear  has stainless steel insert supplied to finish the tile edges. The stainless steel insert can be upgraded to a tile insert (Select Above)
• 5 sizes available (See dimensions below)
• Can trim the length of the 1500 and 1800 long decks down to within 80mm of the drain slot to help fit into alcoves.

Dimensions of Impey Aqua-Dec Linear 3 Fall Decks

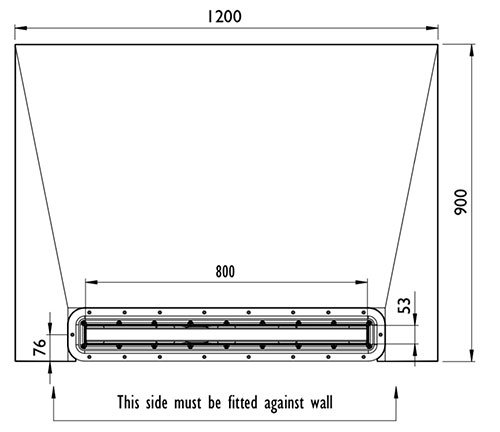

Impey Linear Deck 3 (1200x900) AD3L1290

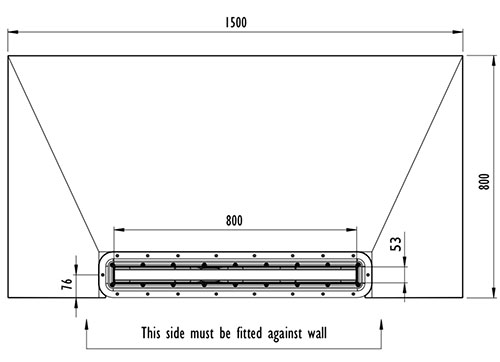

Impey Linear Deck 3 (1500x800) AD3L1580

      ​      ​      ​      ​      ​      ​

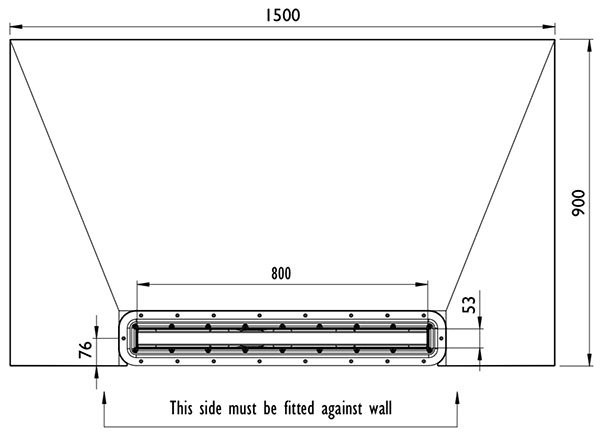

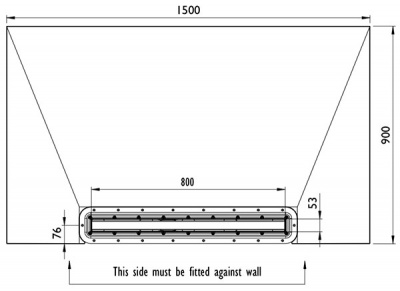

Impey Linear Deck 3 (1500x900) AD3L1590

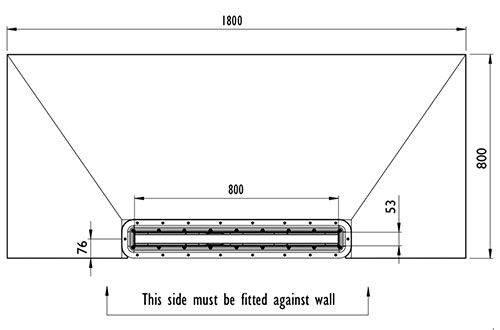

Impey Linear Deck 3 (1800x800) AD3L1880     ​

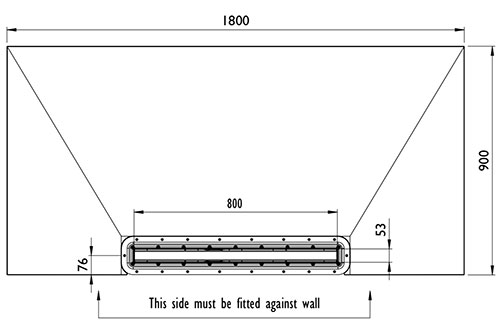

Impey Linear Deck 3 (1800x900) AD3L1890
