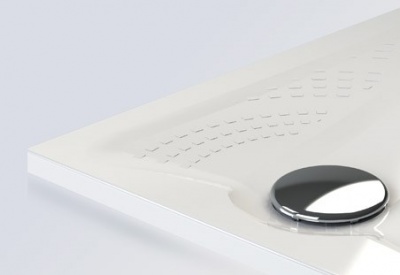

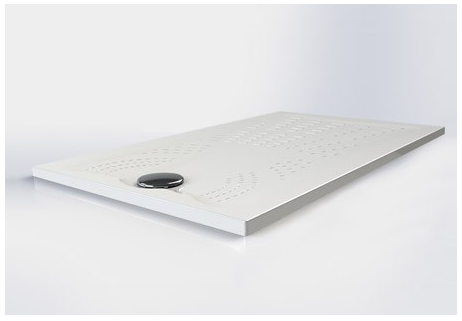

Impey Mantis Shower Tray

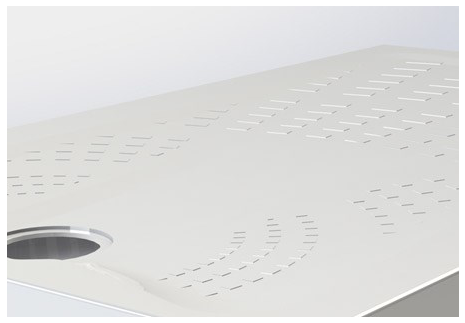

The Impey Mantis Shower tray is the industry’s first ultra slim shower tray and lowest available on the market at only 24mm in height.![Impey Mantis Low Level Shower Tray. Only 24mm high provides easy access for wheelchairs](/user/products/large/Mantis-imepy-shower-tray-close-up.png)
Developed after direct consultation with Occupational Therapists and Contractors, Mantis offers the perfect solution in situations when a floor former cannot be installed. Mantis can be installed above or below ground to suit specific locations, has a flow rate of 11 litres per minute and is supplied with a tile up-stand and compatible gravity drainage.
Mantis has been designed with an easy to clean, slip resistant satin tread pattern that qualifies to DIN 51097 Class 'B' on slip resistance. This provides an increased grip for users in wet, soapy conditions compared to more traditional shower trays.
Mantis is available in 7 sizes including 2 bath replacement sizes which can also be cut down to a minimum length of 1400mm with supplied end caps to ensure a perfect fit. Bedding down of the tray is recommended.
The ultra slim height of only 24mm allows for direct use with a wheelchair.
The Mantis tray can be installed above or below ground to suit specific locations and is supplied with a tile up-stand and compatible gravity drainage.

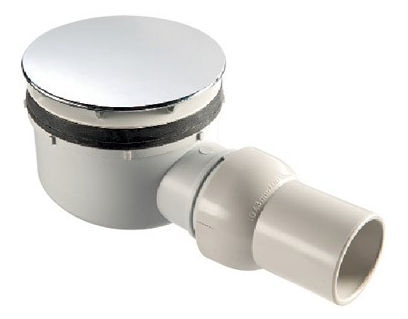

![Impey Mantis Shower Tray Waste outlet image](/user/products/large/Impey Shower Tray Waste IMOR-H.png)

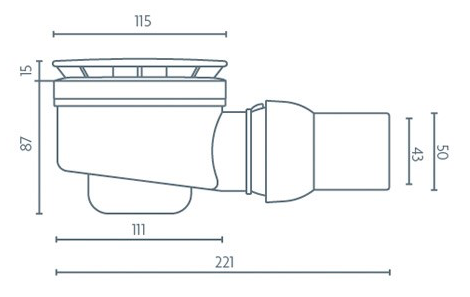

![Impey Mantis Shower tray waste outlet IMOR/H dimensions](/user/products/large/Impey Shower Tray Waste IMOR-H[1].png)

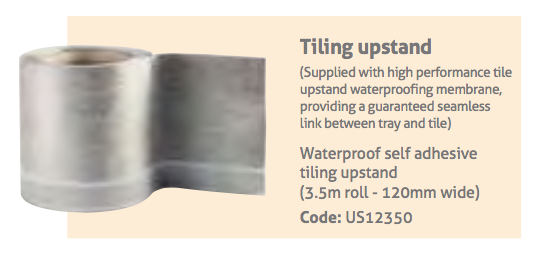

![Tiling upstand tape for use with Impey Mantis shower tray to provide a water tight seal at the edge of the shower tray.](/user/products/large/Impey Tiling Upstand Tape for Shower Trays.png)
Impey Mantis Shower Tray Features
-
Low level access tray with a step in height of only 24mm
-
12 Sizes in Total including 2 Bath replacement sizes
-
End centre drain position
-
Flow rate: 11 l/min
-
For use with Electric showers
-
Slip resistant surface - DIN 51097 Class 'B'
-
90mm waste IMOR/H supplied as standard
-
Tile up-stand Supplied
-
Unhanded tray with easy clean surface
-
Bedding down recommended
-
Lifetime Guarantee
Mantis is available in 12 sizes including 2 Bath replacement sizes which can also be cut down to a minimum length of 1400mm with supplied end caps to ensure a perfect fit.
Dimensions and waste positions are given below.

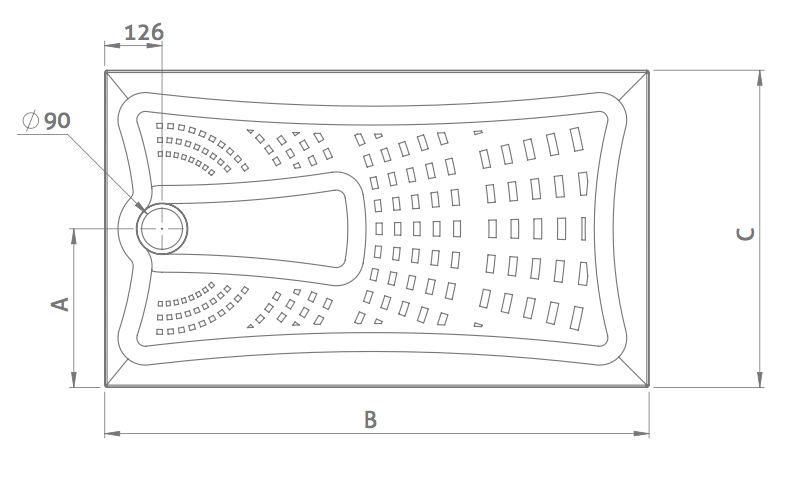

![Dimensions of Impey Mantis shower tray showing the waste outlet position.](/user/products/large/Impey-Mantis-Shower-Tray-Dimensions.png)
900mm x 900mm (A)449 / (B)900 / (C)900
1000mm x 1000mm (A)499 / (B)1000 / (C)1000
1200mm x 700mm (A)349 / (B)1200 / (C)700
1200mm x 800mm (A)399 / (B)1200 / (C)800
1300mm x 700mm (A)349 / (B)1300 / (C)700
1300mm x 800mm (A)399 / (B)1300 / (C)800
1400mm x 700mm (A)349 / (B)1400 / (C)700
1400mm x 800mm (A)399 / (B)1400 / (C)800
1500mm x 700mm (A)349 / (B)1500 / (C)700
1500mm x 800mm (A)399 / (B)1500 / (C)800
1700mm x 700mm (A)349 / (B)1700 / (C)700
1700mm 800mm (A)399 / (B)1700 / (C)800
