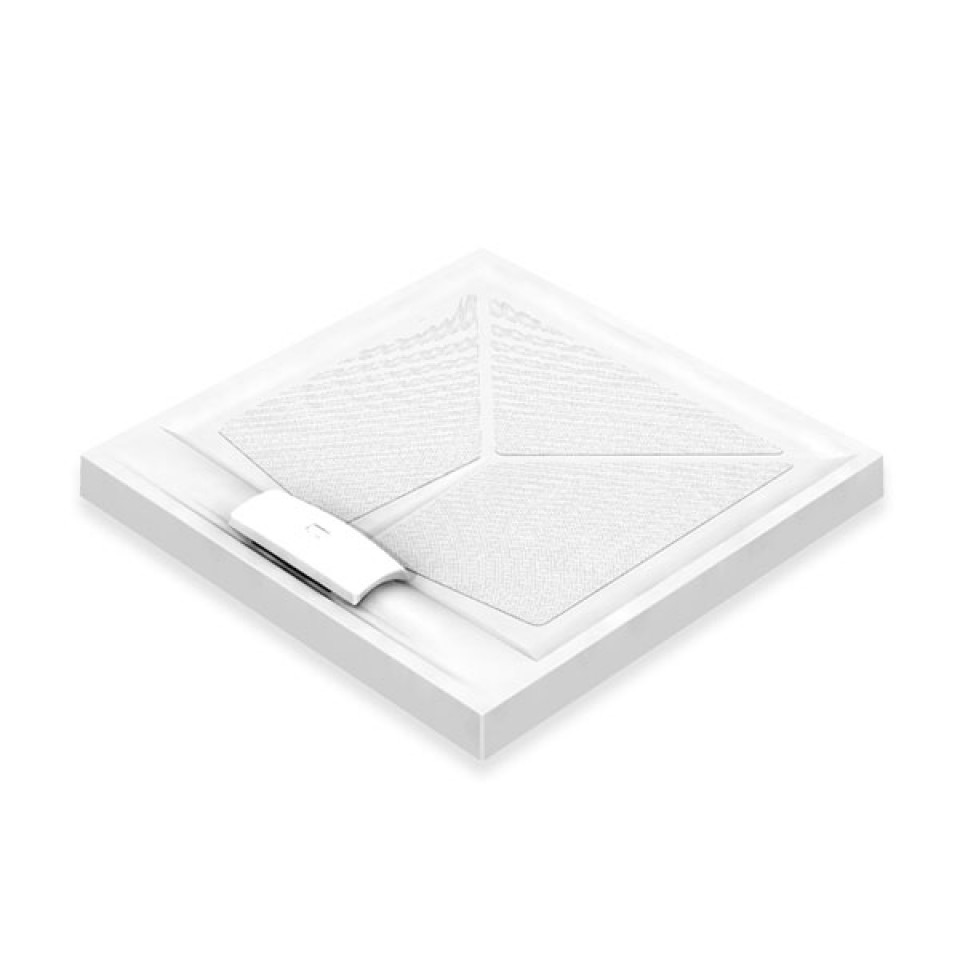

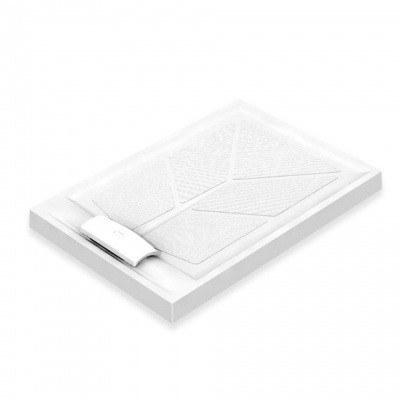

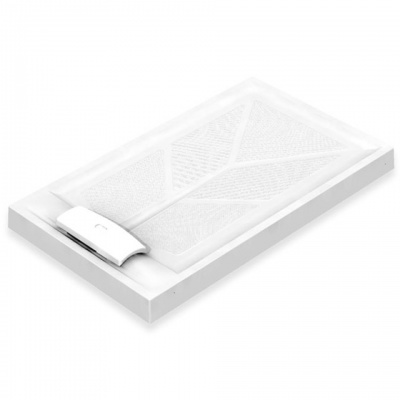

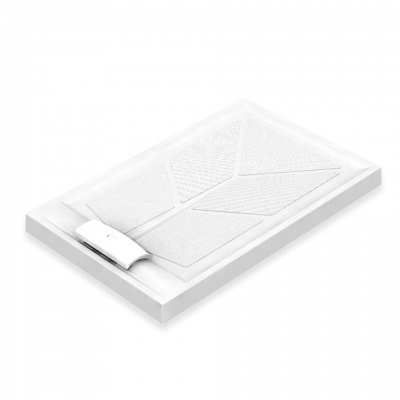

AKW Sulby Shower Tray with Gravity Waste

AKW Sulby Shower Tray with Gravity Waste
  Zoom

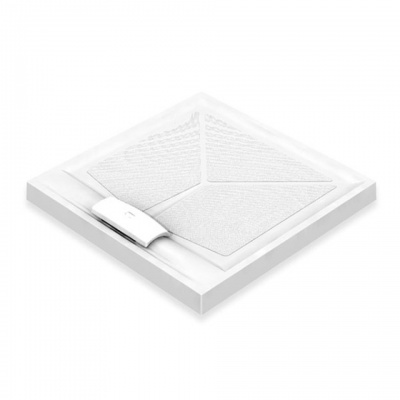

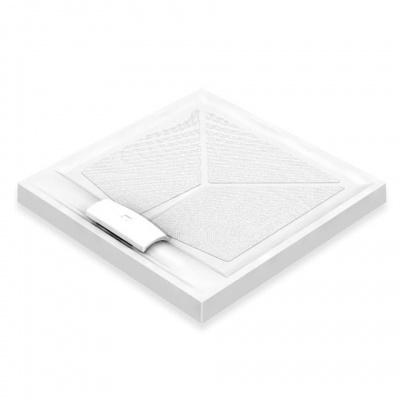

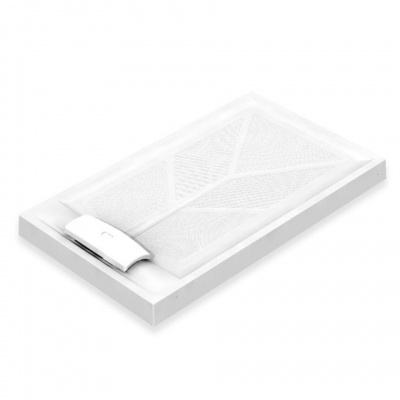

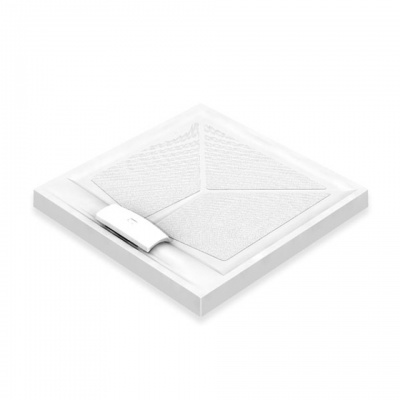

Shower Tray Size: 820x820Shower Tray Size: 900x900Shower Tray Size: 1000x1000Shower Tray Size: 1200x700

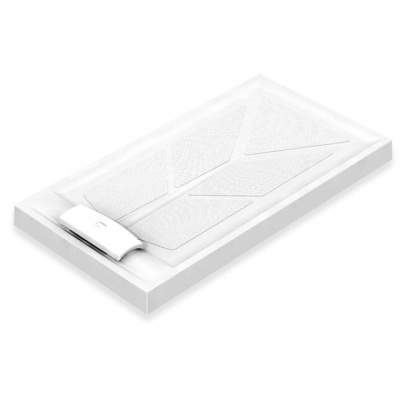

Shower Tray Size: 1200x760Shower Tray Size: 1200x820Shower Tray Size: 1300x700Shower Tray Size: 1300x820

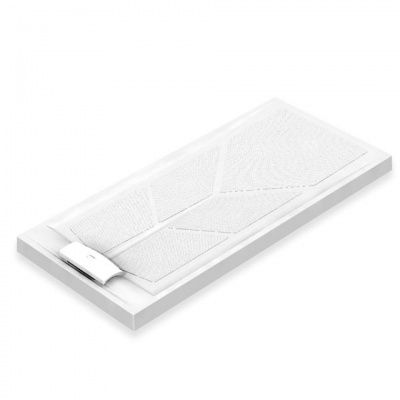

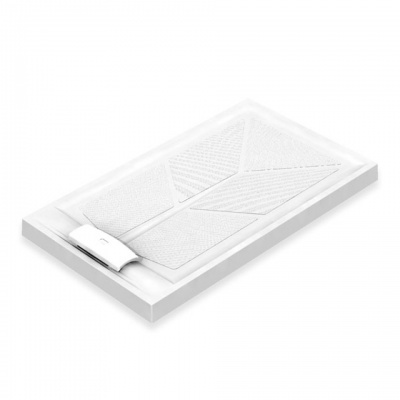

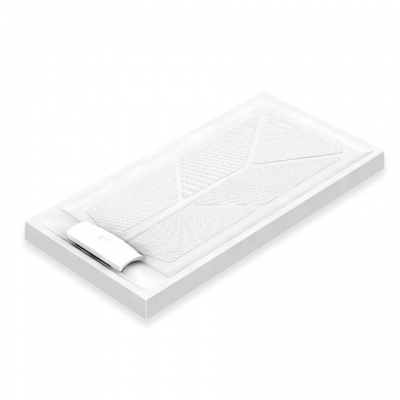

Shower Tray Size: 1420x700Shower Tray Size: 1420x820Shower Tray Size: 1800x700Shower Tray Size: 1800x820

Free Next Day UK wide delivery

See Delivery tab below for terms and cut off times



Our Price:  £575.00(Exc. 20% VAT)(£690.00 Inc. VAT)

Part Number:  17232
Brand:  AKW

+



Relief Available

see VAT Exemption form for details


AKW Sulby Shower Tray with Gravity Waste

Designed for easy installation onto unbreachable floors, the Sulby can go where others can’t.

Benefits of Sulby Shower tray

  • Low entry step in tray for a defined showering area Many flexible features make for simple fitting Excellent drainage (35mm fall inside tray)

  • Choice of corner, side and end ramps for easy access No messy pipework, improving the looks.


Features of Sulby Shower Tray

  • Patented above floor gravity waste with 8 possible outlet points
  • Non handed - fits left or right
  • Tiling flange supplied for alcove installations - Optional pipe duct kit available
  • No under tray foaming required Trim-to-length kit supplied with 1800mm trays In-built above floor gravity waste
  • Adjustable watertrap of 31mm or 38mm
  • 90mm height unless specified as 110m
  • Low entry step in tray for a defined showering area
  • Excellent drainage (35mm fall inside tray)
  • Choice of corner, side and end ramps for easy access
  • No messy pipework, improving the looks
  • Constructed of hand laid fibre glass, double thickness encapsulated sterling board and steel reinforcing sections
  • Integral gravity waste that does not penetrate the floor
  • 30 stone load bearing on tray
  • Easy removable cover to access trap
  • Tray hollow underneath to give area to hide (re-direct) existing pipe work runs
  • Can be used on timber and concrete floors
  • ABS waste accepts 43mm pipe to BS EN 1455-1
  • Please note:  The Sulby waste is limited to 7 litres per minute, please check shower performance for compatibility.
  • *Guaranteed for life

Gravity Waste:

  • Good seals and location
  • Built in filter
  • 124mm deep below mounting surface
  • 50mm water trap depth (seal)
  • 50mm threaded waste fitting

Please note:  The Sulby waste is limited to 7 litres per minute, please check shower performance for compatibility.

Available Downloads for AKW Sulby Shower Tray with Gravity Waste

The AKW Sulby Shower Tray Product Brochure

AKW Sulby Shower Tray with Gravity Waste - Delivery Details

Free Delivery offer only applies to UK mainland orders. Deliveries to remote areas may take longer, please contact us before ordering for an estimated lead time.

Should you have any queries regarding your order or about our service to you, please do not hesitate to contact our sales support team.

To qualify for next-business-day delivery, all orders for AKW Sulby Shower Tray with Gravity Waste must be placed before 1:15 pm on any business day to ensure same-day despatch for an expected delivery on the next business day.

Delivery Schedule for AKW Sulby Shower Tray with Gravity Waste

Order Day / Time - Expected Delivery Day
Monday before 1:15pm - Tuesday
Monday after 1:15pm - Wednesday
Tuesday before 1:15pm - Wednesday
Tuesday after 1:15pm - Thursday
Wednesday before 1:15pm - Thursday
Wednesday after 1:15pm - Friday
Thursday before 1:15pm - Friday
Thursday after 1:15pm - Monday
Friday before 1:15pm - Monday
Friday after 1:15pm - Tuesday

Deliveries are made by a third party company and occasionally circumstances beyond our control result in deliveries not being made on the next working day. This is a very rare occurrence but we advise that Wet Rooms Direct Ltd cannot take responsibility for this but we work closely with our business partners to ensure this rarely occurs.

Wet Rooms Direct cannot be held liable for any losses due to the unexpected late arrival of any goods ordered. In the light of this Tradesmen should NOT be booked until goods are received and checked.

Please note: For deliveries to an address other than the payment cards registered address, it is your responsibility to ensure that there is someone available to sign for the delivery.

In the event of a query regarding your order, your order will be put on hold until we have contacted you to clarify.
